SHC-165G Spinal Cord Remover

Mô tả
Đánh giá (0)

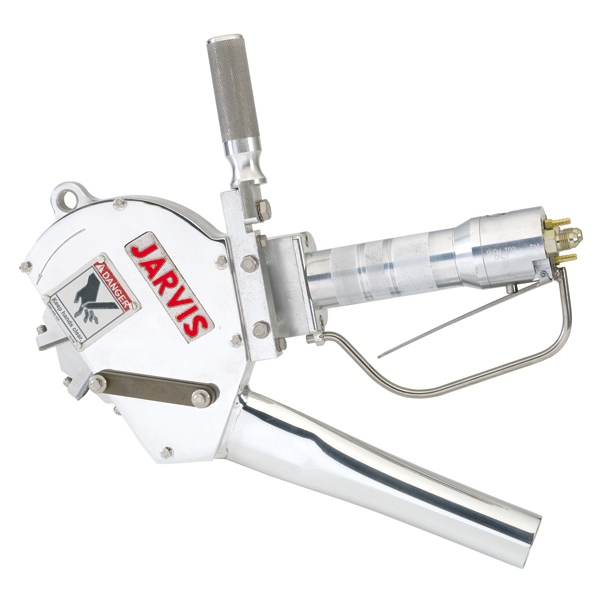

The Jarvis Model SHC-165G — hydraulically powered spinal cord remover for beef or pork.

•Latest patented technology for grinding away BSE risk material, including the spinal cord and the meninges (spinal cord skin).
•Connected to a vacuum system that collects removed spinal cord material for disposal.
•Lightweight, powerful (2.5 hp) hydraulic motor- no bogging down or motor icing; low noise and instant stop.
•Heavy duty gears made to withstand the extreme condition found in larger meat processing plants.
•Rugged construction provides unsurpassed durability.
•Meets national and international requirements for hygiene and safety.

Model SHC-165G
Specifications:
Drive		Hydraulic
Motor Power	2.5 hp	1865 W
Blade Speed at 3.5 gpm		2725 rpm
Control Handles	Single Trigger	Pneumatic
Cutter Head Width
Pork	0.51 in	13 mm
Beef	0.63 lbs	16 mm
Cutting Depth (maximum)	2.5 hp	1865 W
0.51 in/13 mm wide blade-pork	0.81 in	20.6 mm
0.63 in/16 mm wide blade-beef	0.88 in	22.4 mm
Vacuum at 14 in Hg (190 in H20)	320 ft³/min	9.06 m³/min
Overall Length	15.0 in	381 mm
Weight	8.6 lbs	3.9 kg

Hydraulic Power Unit
Motor Power	5 hp	3728 W
Operating Voltage	230 / 460 V, 3 phase, 60 Hz
	all voltages and 50 Hz available
Hose Length	16 ft	5 m
Oil Capacity	20 gal	76 L
Overall Dimensions (l x w x h)	28 x 23 x 28 in
	711 x 584 x 711 mm
Weight (without oil)	225 lbs	102 kg
